您当前的位置:首页 » 产品展示 » GGD低压开关柜

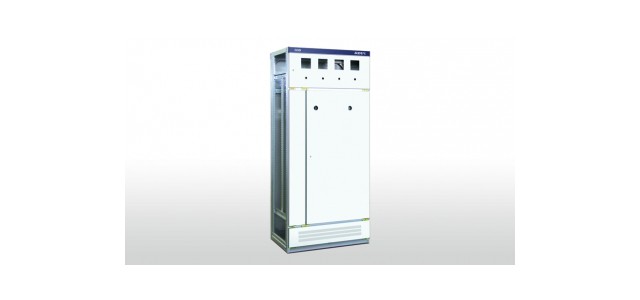

GGD低压开关柜
点击图片查看原图
产品: 已关注次数:157GGD低压开关柜
品牌: 春旭电气
批发价: 面议
最小起订量:
供货总量:
发货期限: 自买家付款之日起 3 天内发货
有效期至: 长期有效
最后更新: 2020-03-26 16:36
  询价
详细信息
 柜架用新型8MF冷弯型钢材拼装而成,其刚性及承载能力均达到电器元件的安装要求,高低压开关柜厂家框架上分别有按E=20mm和E= 100mm数排列的安装孔,以提高产品的装配的通用性。主母线排列在柜的上部,采用的ZMJ型母线夹为积木式组合结构,用高阻燃PPO材料热注成型,机械强度和绝缘度高,能承受有效值50kA,峰值105kA电流,热稳定冲击力长期允许温度可达120C。



The frame is assembled by new type 8MF cold-bend steel with rigidity and bearing capacity meeting installation requirement of electrical components. Installation holes of E=20mm and E=100mm are provided on the frame toimprove the assembly and universality of products. Main bus is arranged on the top of the switchgear adopting ZMJ-type bus clamp in the structure of block combination. It is molded by high flame-resistance PPO material through thermal injection with high mechanical strength and insulation degree, and can bear current with effective value of 50kA and peak value of 105kA. The long-term allowable temperature of thermal stability impact force can reach 120%℃.



主要特点  Main Features



1、框架为组合式结构,基本骨架采用新型免焊接8MF型钢组成;



2、主体框架可采用镀锌板或敷铝锌板加工,更加环保、省时高效;



3、柜体防护等级为IP3X。



1. The frame is in combined structure with the main frame made of new-type welding-free 8MF steel;



2. Main frame can be processed by galvanized plate or aluminum zinc plate to be more environmentally friendly, time saving and efficient.



3. Switchgear protection grade is IP3X;
